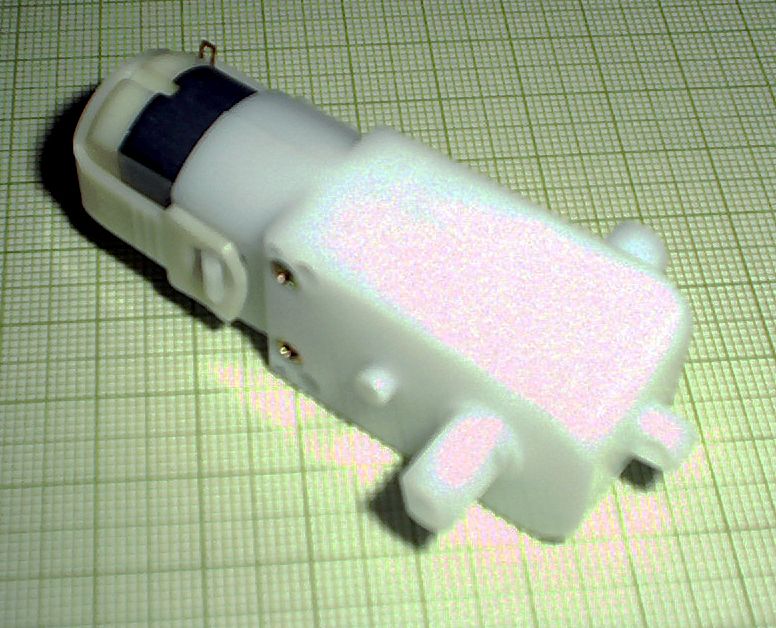

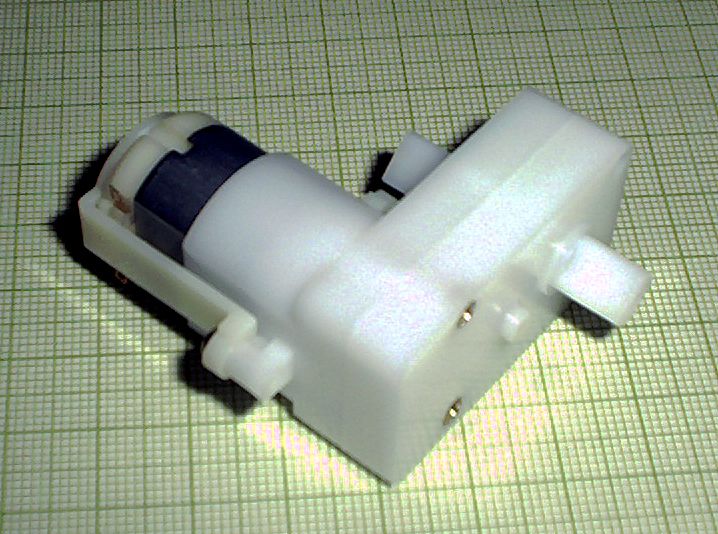

Home  Sources  Part descriptions  Electrical parts  Mechanical parts  DC motors  Geared motors Gearmotors compared Nihon details Copal details Omron details Omron gearhead details Tokyo Micro details TS-53 details CS-20bb details Microcassette details BIObug 143:1 details BIObug 177:1 details BIObug 224:1 details  Stepper motors  Misc. parts Assembly descriptions   BEAM Pieces is a BEAM Reference Library site.		B.I.O. Bug 224:1 90 degree and "dog-leg" gearmotor detailed data All the data that's fit to print Manufacturer Mabuchi Source Solarbotics Comments I've been told this is a modified version of motors to be seen in a forthcoming second-rev (Christmas, 2002) BIO-Bug toy. 10 lines / cm 10 lines / cm This page presents data from my testing of two 224:1 "BIO Bug style" motors now sold by Solarbotics (motors provided courtesy of Dave Hrynkiw). These are very impressive little motors for the price, and both versions yield almost identical performance. The test procedure I used is described elsewhere. Voltage No-load Current (mA) No-load Speed (deg/sec) Efficiency (deg / mW-sec) 0.304 38.3 0.475 65.5 0.7 91 0.71 35 22.94 0.92 1.204 39.4 48.08 1.01 2.47 44 112.30 1.03 3.798 48 180.09 0.99 4.96 52 239.36 0.93
