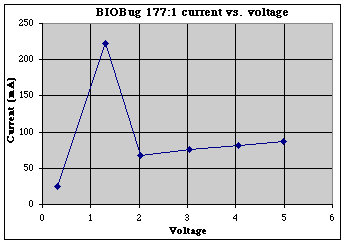

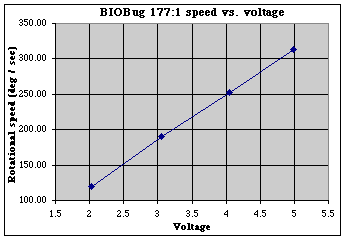

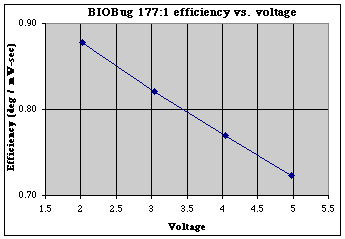

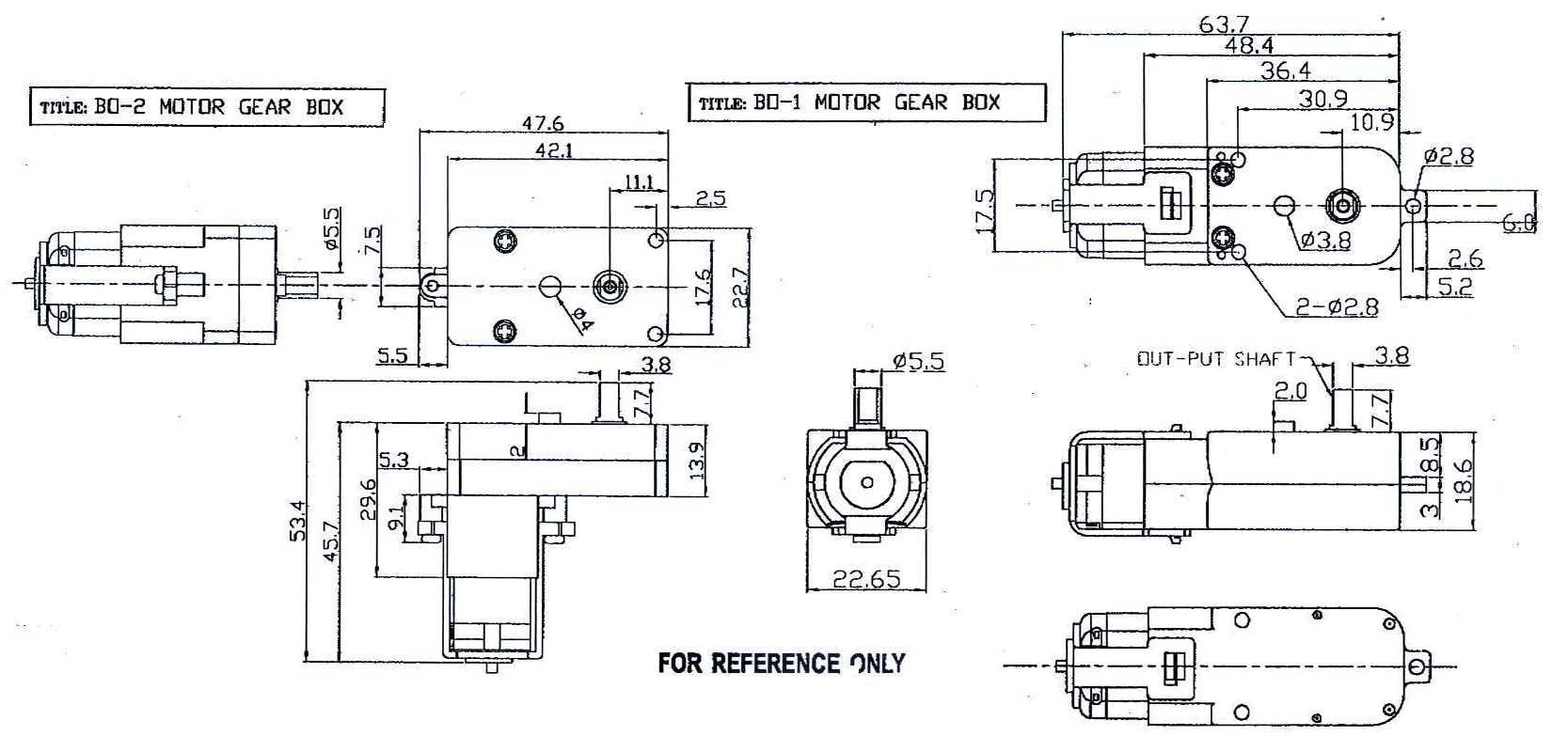

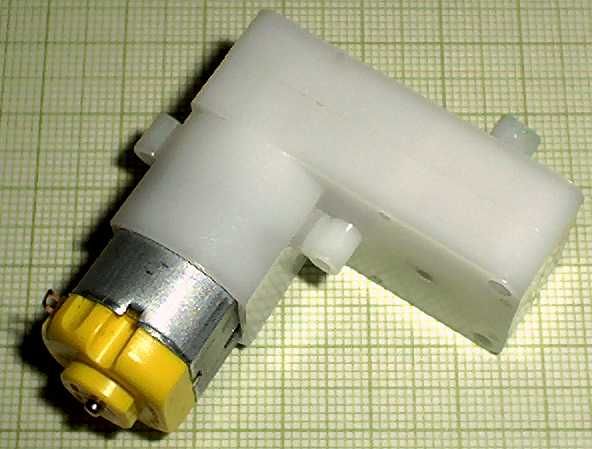

Home  Sources  Part descriptions  Electrical parts  Mechanical parts  DC motors  Geared motors Gearmotors compared Nihon details Copal details Omron details Omron gearhead details Tokyo Micro details TS-53 details CS-20bb details Microcassette details BIObug 143:1 details BIObug 177:1 details BIObug II 224:1 details  Stepper motors  Misc. parts Assembly descriptions   BEAM Pieces is a BEAM Reference Library site.		B.I.O. Bug 177:1 gearmotor detailed data All the data that's fit to print Manufacturer Unknown Source Hasbro blue "BIO Bug" Comments This is the front motor for a blue BIO Bug. 10 lines / cm This page presents all the data from my testing of a single example of the 177:1 motor used in the front of a blue "BIO Bug" (motor provided courtesy of Dave Hrynkiw of Solarbotics). The test procedure I used is described elsewhere. Voltage No-load Current (mA) No-load Speed (deg/sec) Efficiency (deg / mW-sec) 0.306 25.5     1.305 222.3     2.027 67 119.21 0.88 3.047 76 190.07 0.82 4.05 81 252.63 0.77 4.98 87 313.32 0.72     For more information... The original mechanical drawing for this motor is now online here.
